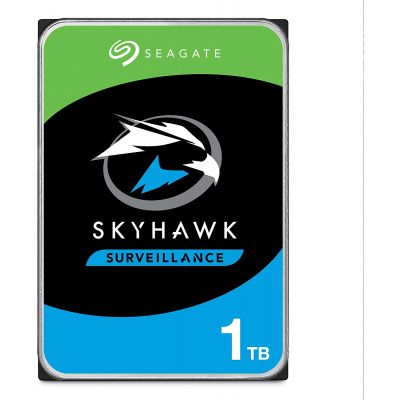

ST1000VX005

SPECIFICATIONS

• Capacity: 1TB
• SkyHawk™ Health Management Included: —
• Interface: SATA 6Gb/s
• Recording Technology: CMR
• Drive Design: Air

FEATURES AND PERFORMANCE

• Drive Bays Supported: Up to 8
• Cameras Supported: Up to 64
• RV Sensors: —
• Max Sustained Transfer Rate OD (MB/s): 180MB/s
• Cache (MB): 64
• Workload Rate Limit (WRL): 180

RELIABILITY

• Tarnish Resistant: Yes
• Load/Unload Cycles: —
• Nonrecoverable Read Errors Rate, Max: 1 per 10E14
• Power-On Hours per year: 8760
• Mean Time Between Failures (MTBF) (hours): 1,000,000hr
• Warranty, Limited (years): 3
• Rescue Data Recovery Services (years): —

POWER MANAGEMENT

• Startup Current, Typical (12V, A): 1.8
• Average Operating Power (W): 5.6W
• Idle Average (W): 4.0W
• Standby Mode/Sleep Mode, Typical (W): 0.5/0.5
• Voltage Tolerance (5V): ±5%
• Voltage Tolerance (12V): ±10%

PHYSICAL

• Height (mm/in, max): 20.20mm/0.795in
• Width (mm/in, max): 101.85mm/4.01in
• Depth (mm/in, max): 146.99mm/5.787in
• Weight (g/lb, typical): 415g/0.915lb
• Carton Unit Quantity: 25
• Cartons per Pallet/Cartons per Layer: 40/8

ENVIRONMENTAL

• Operating (ambient, min °C): 0
• Operating (drive case, max °C): 70
• Nonoperating (ambient, min °C): -40

CONFIGURATION

OTHER
