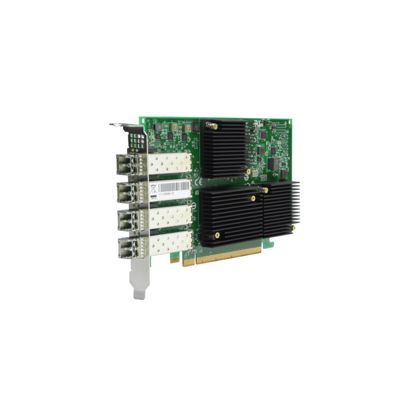

LPe32004-M2-SIO- 4 Port 32GFC Short Wave Optical- LC SFP+

SPECIFICATIONS

• MPN: LPe32004-M2
• Ordering Part #: LPe32004-M2-SIO- 4 Port 32GFC Short Wave Optical- LC SFP+
• Ordering Optional Accessories: LP32-LW-OPT-1 32GFC Optic (longwave laser with LC connector SFP+ transceiver): 1 pack, LP32-LW-OPT-2 32GFC Optics (longwave laser with LC connector SFP+ transceiver): 2 pack
• Whats in the box: Each box includes: Quantity 1, low-profile Host Bus Adapter, with Optic/s; Quantity 1, standard bracket; Quantity 1, Firmware download sheet and RoHS sheet
• Generation: Gen 6 (32/16GFC)
• Physical Dimensions: Full-height PCIe card, 111.15mm x 167.64mm (4.376” x 6.600”), standard bracket
• Cable Support: 100m at 32Gb on 50/125 μm OM4 MMF, 20m at 32Gb on 50/125 μm OM2 MMF, 70m at 32Gb on 50/125 μm OM3 MMF, Operating at 32Gb
• Optical Data Rates: 28.05 Gb/s (3200Mb/s), 14.025 Gb/s (1600Mb/s), 8.5 Gb/s (800Mb/s) (auto-detected)
• Hardware Environment: PowerPC, SPARC, Intel x86, x64
• Ports: 4
• Optics: Short wave lasers with LC type connector Fixed optics
• Host Bus Type: PCIe Gen3 x16
• I/O Controller: XE501
• Operating Humidity: 5% to 95% non-condensing
• OS Support: Additional support is available from OEMs and partners, Microsoft Windows, Oracle Solaris, Red Hat Enterprise Linux, SUSE® Linux Enterprise Server, VMware vSphere
• Industry Standards: Current ANSI/IETF Standards: FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-GS-6, FC-LS-2, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-5, FCP-4, Fibre Channel class 3, Legacy ANSI/IETF standards: FC-PH, PCIe base spec 3.0, PCIe card electromechanical spec 3.0, PHP hot plug-hot swap, SBC-3, SPC-4, SSC-4
• Regulatory Certifications: [Australia(RCM), Japan(VCCI Class A), China(China RoHS Compliant), Europe(CE Mark, EU RoHS compliant,TUV Bauart Certified), Korea(MSIP[formerly KCC/MIC]Class A), North America (FCC/ICES Class A, UL/CSA Recognized), Taiwan(BSMI Class A)]
