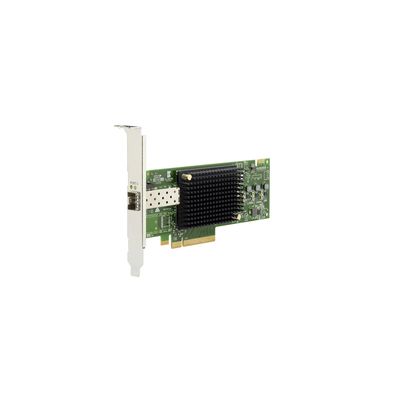

LPe31000-M6 - 1 Port 16GFC Short Wave Optical – LC SFP+

SPECIFICATIONS

• MPN: LPe31000-M6
• Ordering Part #: LPe31000-M6 - 1 Port 16GFC Short Wave Optical – LC SFP+
• Whats in the box: Each box includes: Quantity 1, low-profile Host Bus Adapter, with Optic/s; Quantity 1, full-height bracket; Quantity 1, low-profile bracket; Quantity 1, Firmware download sheet and RoHS sheet
• Generation: Gen 6 (32/16GFC)
• Physical Dimensions: Short, low profile PCIe card, 167.64mm x 68.91mm (6.60” x 2.71”), Standard bracket (low profile bracket ships in box)
• Cable Support: 100m at 32Gb on 50/125 μm OM4 MMF, 20m at 32Gb on 50/125 μm OM2 MMF, 70m at 32Gb on 50/125 μm OM3 MMF, Operating at 32Gb
• Optical Data Rates: 14.025 Gb/s (1600Mb/s), 8.5 Gb/s (800Mb/s), 4.25 Gb/s (400 Mb/s) (auto-detected)
• Hardware Environment: PowerPC, SPARC, Intel x86, x64
• Ports: 1
• Optics: Optics Short wave lasers with LC type connector optics
• Host Bus Type: PCIe Gen3 x8
• I/O Controller: XE501
• Operating Humidity: 5% to 95% non-condensing
• Storage Temperature: -20° to 85°C (-4° to 185°F)
• OS Support: Additional support is available from OEMs and partners, Oracle Solaris, SUSE® Linux Enterprise Server, VMware vSphere
• Industry Standards: Current ANSI/IETF Standards: FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-GS-6, FC-LS-2, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-5, FCP-4, Fibre Channel class 3, Legacy ANSI/IETF standards: FC-PH, PCIe base spec 3.0, PCIe card electromechanical spec 3.0, PHP hot plug-hot swap, SBC-3, SPC-4, SSC-4
• Regulatory Certifications: [Australia(RCM), Japan(VCCI Class A), China(China RoHS Compliant), Europe(CE Mark, EU RoHS compliant,TUV Bauart Certified), Korea(MSIP[formerly KCC/MIC]Class A), Taiwan(BSMI Class A)]
